- 316/316L stainless steel construction for superior corrosion resistance.
- One-piece construction body provides strength.
- 316 stainless steel pin prevents detachment of the bonnet from the body due to vibration.
- Easy to assemble and replace packing.
- Burr-free threads and internal surfaces reduce leaks, promoting accurate transmitter readings.
- Compact design requires minimum space for operation and installation.
- Dust caps are fitted to contain stem lubricant and prevent the ingress of contaminants.
- Bonnet to body seals are metal to metal, No O-rings used.
- Mounting holes provided for self-supporting application.
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings.
- Maximum standard pressure up to 6,000 psig @ 100°F (414 bar @ 38° C)
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability.
- Panel mounting options available.
- For soft seat 6,000 psi pressure rating (@ 100°F maximum)
- For hard seat 10,000 psi pressure rating (@ 100°F maximum)
- Orifice Size : 0.138" (3.5mm) to 0.250" (6.4mm)
Manifolds
Manifolds
Manifolds
Manifolds
Manifolds
Manifolds
Manifolds
View: 433 - Date Submitted: 12/10/2021

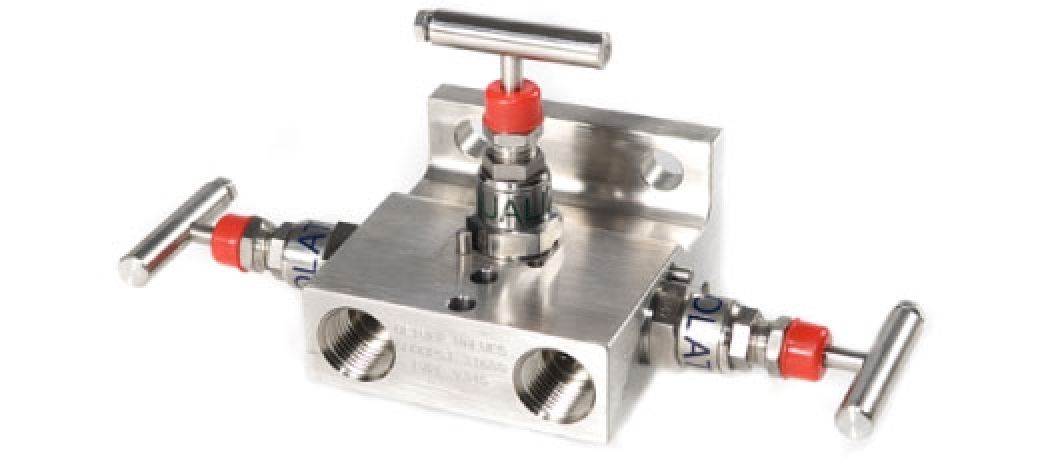

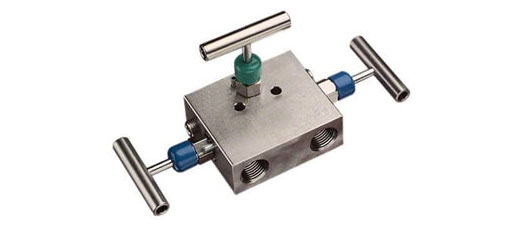

A manifold is a device that connects one or more block/isolate valves of a hydraulic system. Valves of a hydraulic system can include a ball, needle, bleed and vent valves.
Content
In the case of a block and bleed manifold, the purpose is to ensure that the fluids from upstream do not come into contact with the components from downstream. This is achieved through isolating the flow of the fluid in the system.
We supply a vast range of manifold valves. Ranging from 2-way to 5-way and monoflange manifolds, all our valves offer superior efficiency and dependability. We can also provide a variety of manifold accessories, such as connectors and adaptors, to complete your manifold package. In this article, we showcase the types of manifold valves available at Fluid Controls and discussed manifold valve function.
Features
Other product
These valves feature a Micro-Finished Floating Ball design to provide a positive seal in both directions. Series IBV Instrument Ball Valves also feature a “straight-through” flow path to ensure high flows with minimum pressure drop. The valves are...
Through the non-rotating spindle tip of the block-and-bleed valve, the wear of the sealing elements is reduced. This results, particularly with frequent opening and closing, in a noticeable increase in the service life.
Instrument Check Valves are used to make sure that medium flows only in one direction . Check Valves provide unidirectional flow and tight shut-off for liquids and gas with high reliability. When differential drops below cracking pressure, valve shuts...
A needle valve is used to accurately control flow rates of clean gasses or fluids. The adjustments are gradual and smooth for controlling the flow rate, however, they can also be used as a reliable shut-off valve.
