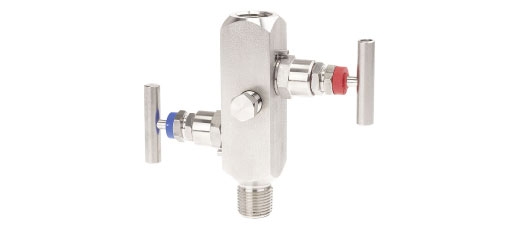

Instrument block & bleed valve

View: 531 - Date Submitted: 12/10/2021

Through the non-rotating spindle tip of the block-and-bleed valve, the wear of the sealing elements is reduced. This results, particularly with frequent opening and closing, in a noticeable increase in the service life.

+84 28 3512 0138 (Hotline) Contact

Content

With 2-valve manifolds, the block-and-bleed version is standard. The shut-off valve of the separates the process from measuring instruments such as pressure gauges, switches or transmitters. By closing this valve the instrument can be safely dismounted for services like recalibration or replacement. The vent valve allows the safe venting of the instrument, prior to the dismounting or for zero point check.

Through the blow-out proof design of the block-and-bleed valve, working safety is improved, especially in applications with high pressure loading.
