View: 516 - Date Submitted: 31/12/2019
Offering a reliable way to connect pipe systems with the various equipment, valves, and other components of virtually any processing system, flanges are the second most used joining method after welding.
Using flanges adds flexibility when maintaining piping systems by allowing for easier disassembly and improved access to system components.
Content
Product Details
|

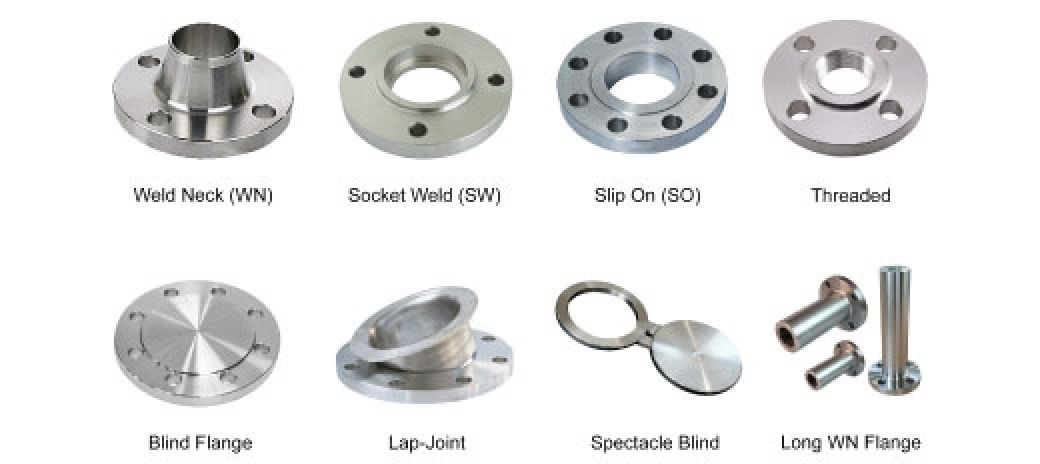

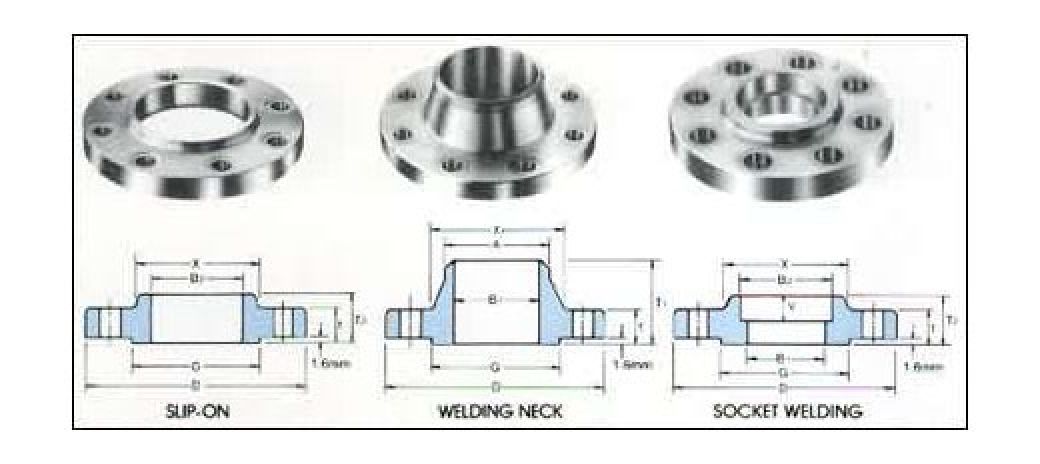

Type of Flanges Weld Neck Flanges Slip On Flanges Socketweld Flanges Threaded Flanges Blinds Flanges Long Weld Necks Flanges Nozzles/Integrally reinforced Swivel Ring Flanges, Ball Flanges, Comapct Flanges Connectors Anchor Flanges/Anchor Blocks Flange T-Lets Special Forged products Integral Hub & Clamp
Pressure Classes ANSI 150 to 2500# API 5000 to 15000# |
Duplex A182 F44 to 55 Stainless Steel F304/L&H, F316/L&H, F310/H, F321/H, F347/H, F904/L Carbon Steel A105N, LF1 to 3, MSS SP44, A694 F42 to 80 Chrome Moly Steel A182 F1 to 91 Titanium B381 F1 to F29 Nickel Alloy Monel 400, Inconel 600 & 625, Incoloy 800 & 825, Alloy C276 6 Moly S31254 |
