Ball valve

View: 516 - Date Submitted: 25/08/2021

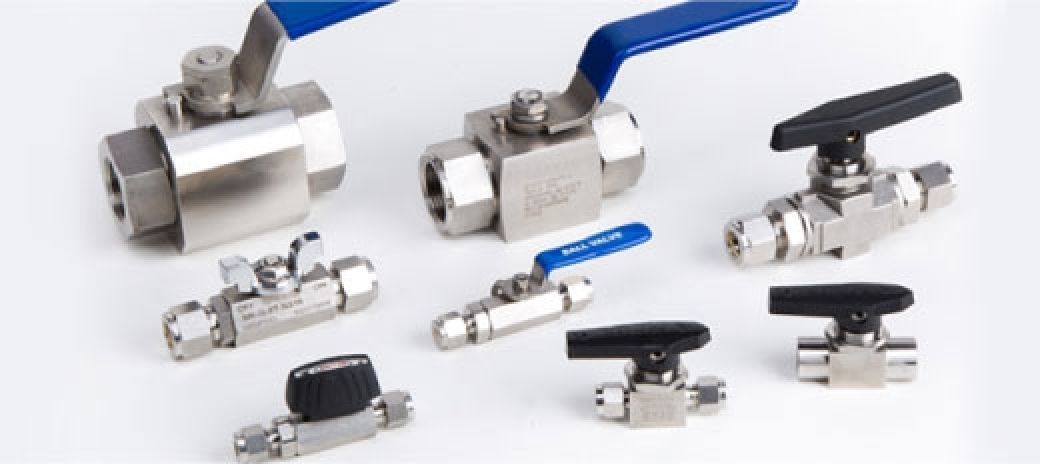

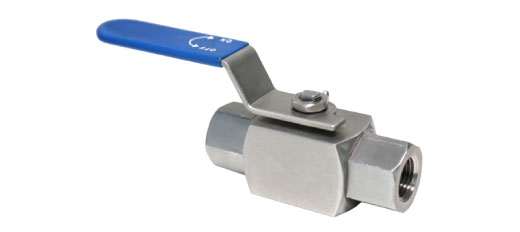

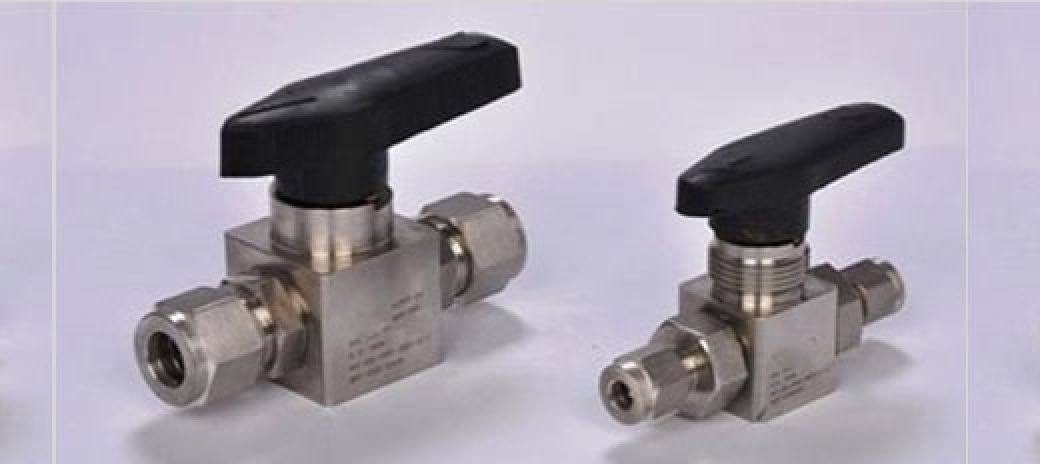

These valves feature a Micro-Finished Floating Ball design to provide a positive seal in both directions. Series IBV Instrument Ball Valves also feature a “straight-through” flow path to ensure high flows with minimum pressure drop. The valves are designed to operate with a low operation torque while providing a long service life. All valve configurations can be panel mounted.

+84 28 3512 0138 (Hotline) Contact

Content

Features

Two way on-off, 2 Way Angle or 3 way switching models.
Blow-Out Proof Bottom Loaded stem.
Low operating torque with SS lever/Fenolic handle.
Full or reduced Bore for Perfect Flow.
Floting ball design for positive seating.
Working Pressure from 1000 PSI to 6000 PSI.
With PTFE seat.

Our ball valves are a simple, cost-effective solution for process lines with low pressure drops. Options include floating ball, trunnion-mount and divertable ball valves.

Manufactured from 316 Stainless Steel with PEEK seats, it is suitable for a wide range of Oil & Gas applications. It features 2 piece construction, and is rated for use with pressures up to 10,000 psi and temperatures ranging -40. . .230°C
